6. Test Objects Identification using Application Mockups

AI Mockup Identification overview

Available from UFT One 15.0.2 or later

Use AI Mockup Identification to inspect application mockups and identify objects you could use in your test. In this way, you can prepare your test much earlier and design your test even before your application is fully developed.

Prerequisites

AI Mockup Identification does not require a web or mobile application. Instead, it uses images stored in .jpg, .jpeg, or .png format in a local folder.

Inspect application mockups
  1. In the UFT One toolbar, click the down arrow near the AI Identification button and select the AI Mockup Identification.

    step 1

    In the dialog box that opens, select a folder containing images, select Web or Mobile as the AI identification context, and click Open.

  2. The AI Mockup Identification View loads all of the images in the folder by file name and creates an image gallery.

  3. The AI Mockup Identification View inspects the image that appears first in the file name order and highlights all identified visual elements by default.

  4. To manage images in the folder, edit settings in the image gallery:

    Select File Name or Modified Time to sort the images by file name or modified time.

    Click Refresh to refresh the images if the images are changed.

    Click Choose different to select a different folder of images to inspect.

    To achieve optimal identification, configure the settings on the inspected page:

    • Select Visual Element or Text to show either the objects that UFT One identified visually or areas of text.

    • Select Web or Mobile to change your AI identification context again.

Create an AI-based test using Mockup identification

Thanks to UFT One’s computer vision, you can start test Design without an application. You can easily build an AI-based test script based on an application mockup.

Let’s create an AI-based test script for the AOS application’s login, using the application’s mockup screens

As a prerequisite, store the AOS application images in .jpg, .jpeg, or .png format in a local folder path: “C:\Users\demo\Documents\Mockups”.

Note: You can right click on the Mockup images of AOS application in the following steps to download and save them to the local folder

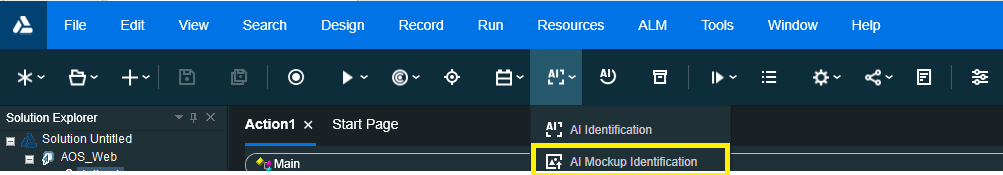

  1. In the UFT One toolbar, click the down arrow near the AI Identification button and select the AI Mockup Identification.

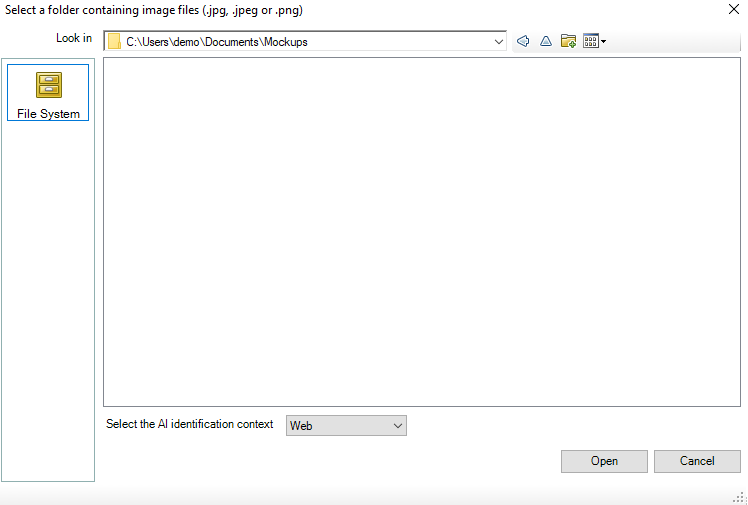

  2. Select a folder which contains the Mockup images of AOS application and click Open after selecting AI identification context as Web

    Select the AI identification context: Web

    step 2

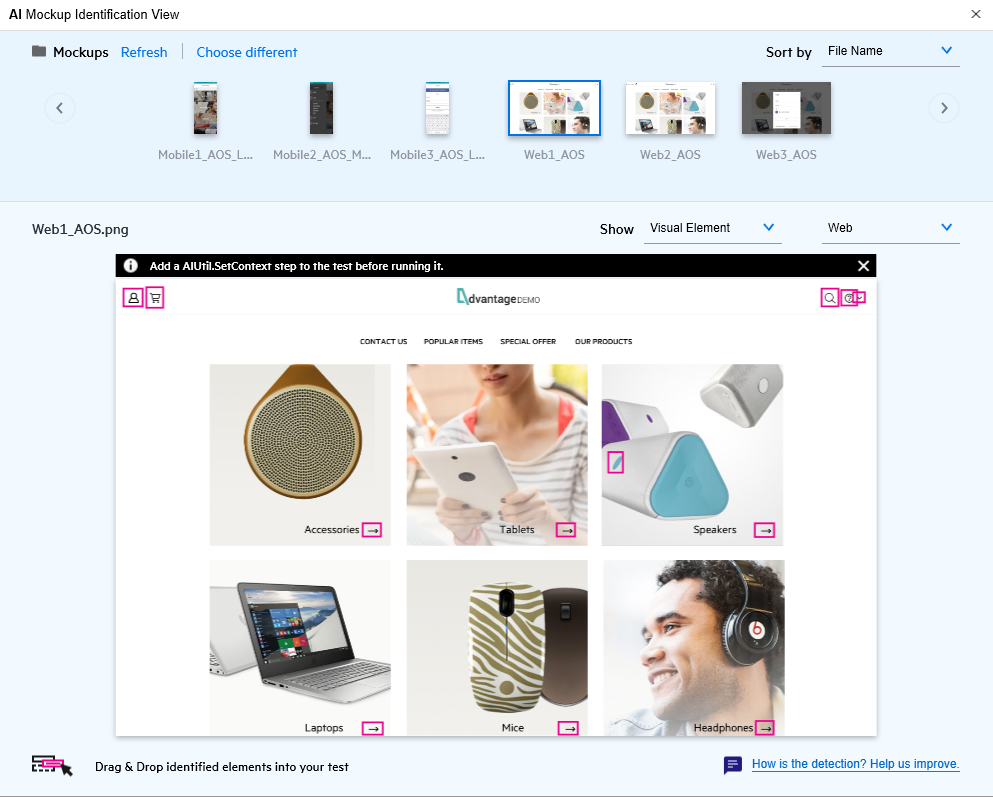

  3. Choose the AOS home Mockup image, the AI Mockup Identification View inspects the Visual Elements from the image by default

    step 3

    Drag and drop the Profile visual element from the Mockup identification to your test step

    AIUtil(“profile”).Click

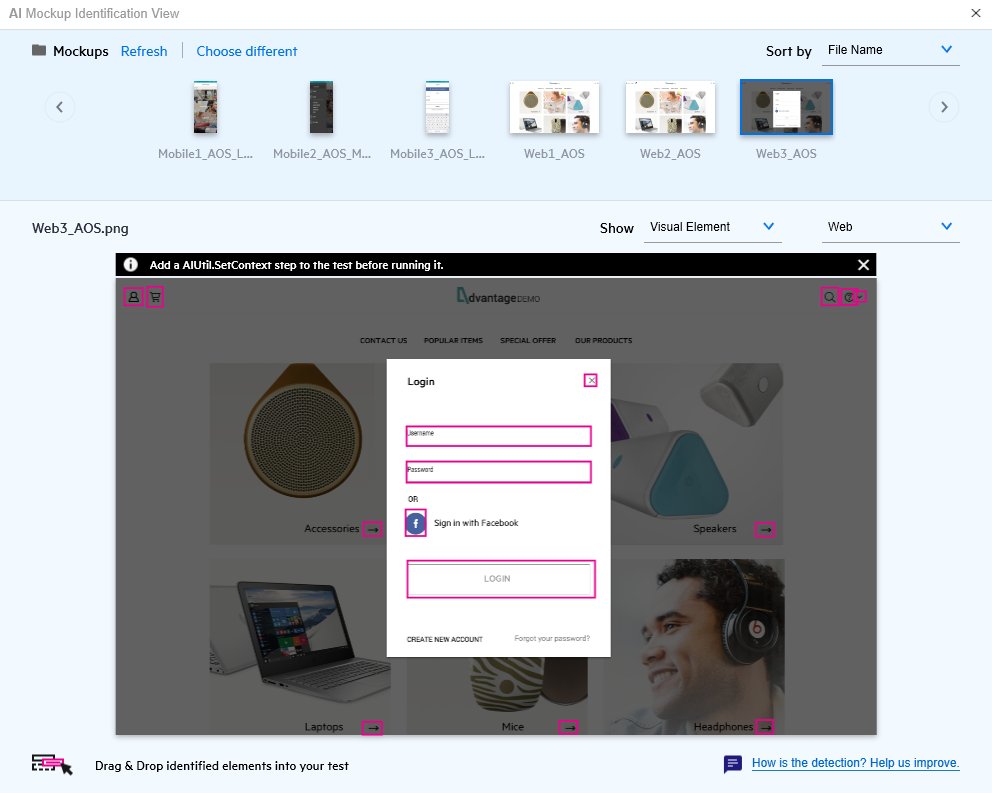

  4. Click on the second picture in the image gallery

    AI Mockup Identification View inspects the Visual Elements from the image as below

    step 4

    Drag and drop the Username, Password input fields and LOGIN visual elements from the Mockup identification to your test step

    Enter the input values for the Username and Password fields

    AIUtil(“input”, “Username”).Type “aidemo”

    AIUtil(“input”, “Password”).Type “AIdemo1”

    AIUtil(“button”, “LOGIN”).Click
